Product Overview

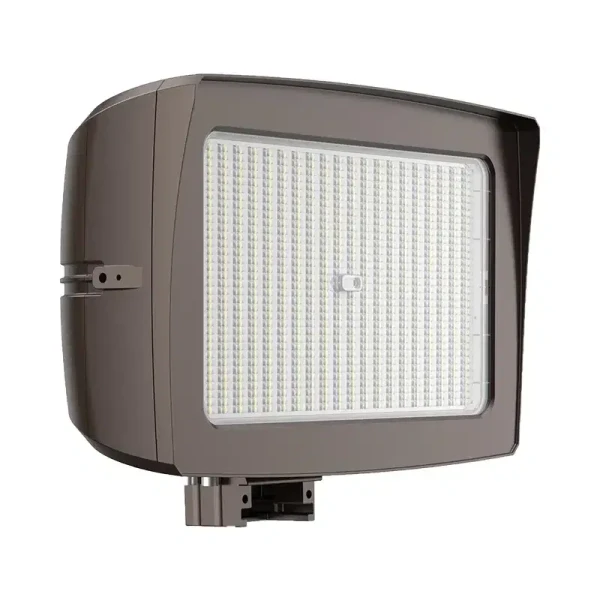

Spec Signature Maximum-Feature Round-Back Flood Lights, 200W/240W/300W, 3000K/4000K/5000K - LF4MAX-XL-300W-MCTPB-P-480V
Technical Specs:
:: Voltage: 480V AC/50~60 Hz
:: Wattage: 200W/240W/300W
:: Power Factor: >0.9
:: Efficacy: 140LPW
:: Housing: Die-cast Aluminum Housing with Powder Coat Finish
:: Photocell Included (With Disconnect Switch)
:: 6KV Lightning Surge Protection
:: Cord Type: 6’ SJTW 18/3 AWG cable
:: Operating Temperature: -40°F to 104°F
:: Suitable for Wet Locations
:: Effective projected areas (EPA’s) are: Front = 0.38 square feet Side = 0.30 square feet Face = 1.05 square feet
:: IP Rating: IP65
:: 7-Year Warranty
:: Dimming: 0~10V Dimmable
:: Multi-CCT & Multi-Power - The Switches are on the Bottom of the Fixture
:: Total Lumens: 42000LM
:: Color Temperature: 3000K/4000K/5000K
:: Color Rendering Index: ≥ 70
:: Adjustable Beam Angle: 135°x125°/120°x120°/90°x90°
:: 70,000 Hours Rated Life
Applications:
:: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
:: Replace existing HID flood lights/ wall packs
Features:
DLC Listed
cUL
Dimming 0-10V
Wet Location
MCTP
