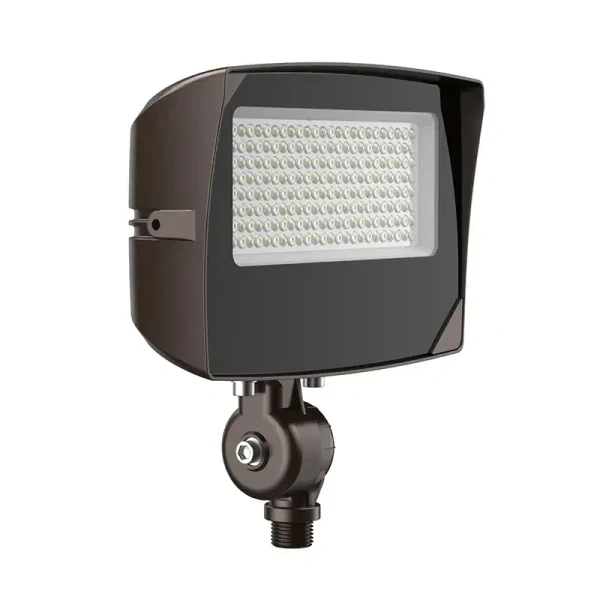

Small Maximum-Feature Round-Back Flood Light with Knuckle, 15W/25W/35W, 3000K/4000K/5000K - LF4MAX-SM-15-35W-MCTPB-KN-P
Technical Specs:
:: Voltage: 120~277VAC/50~60 Hz
:: Wattage: 15W/25W/35W
:: Power Factor: >0.9
:: Efficacy: 140LPW
:: Housing: Die-cast Aluminum Housing with Powder Coat Finish
:: 90° Adjustable 1/2” Knuckle Mount
:: Photocell Included (With Disconnect Switch)
:: 6KV Lightning Surge Protection
:: Cord Type: 1.5’ SJTW 18/3 AWG Cable
:: Operating Temperature: -40°F to 104°F
:: Suitable for Wet Locations
:: Effective projected areas (EPA’s) are:Front = 0.38 square feetSide = 0.30 square feetFace = 1.05 square feet
:: IP Rating: IP65
:: 7-Year Warranty
:: Dimming: 0~10V Dimmable
:: Multi-CCT & Multi-Power - The Switches are on theBottom of the Fixture
:: Total Lumens: 4900LM
:: Color Temperature: 3000K/4000K/5000K
:: Color Rendering Index: ≥ 70
:: Adjustable Beam Angle: 135°x125°/120°x120°/
:: 90°x90°
:: 70,000 Hours Rated Life
Applications:
:: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
:: Replace existing HID flood lights/ wall packs
Features:
DLC Listed
cUL
Dimming 0-10V
Wet Location
IP65
