Product Overview

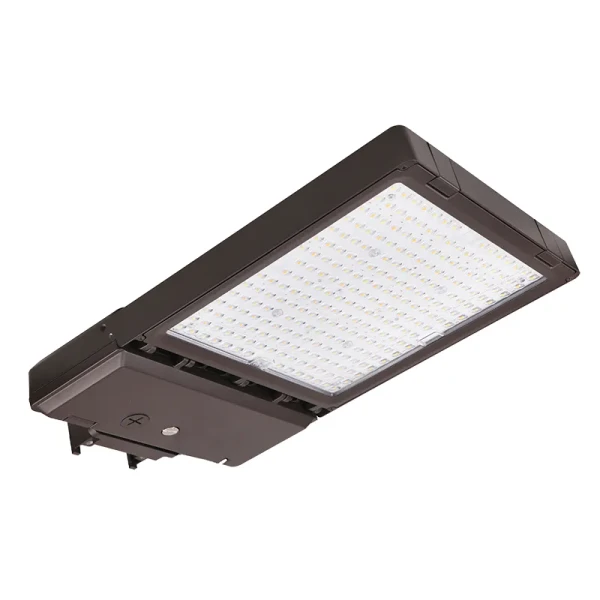

Maximum Feature Area/Flood Light, Sensor & Photocell Ready - LFXMAX-LG-70-150W-MCTP-PSR
Technical Specs:
:: Voltage: 120~277V AC/50~60 Hz
:: Wattage: 70W/100W/150W
:: Power Factor: >0.9
:: Efficacy: 145 LPW
:: With Snap-on & Bolt Mounting Options for One- Person Installations. Select a Mounting Option (Sold Separately)
:: LED: Lumileds Luxeon 2835 High Flux LED
:: Cord Type: 6’ SJTW 18/3 AWG cable
:: Die-cast Aluminum Housing with Powder Coat Finish (Dark Bronze)
:: 10KV Lightning Surge Protection
:: Effective Projected Areas (EPA’s) are: Front = 0.38 ft ², Side = 0.30 ft ², Face = 1.05 ft ²
:: Operating Temperature: -40°F to 104°F
:: IP Rating: IP65 ,Suitable for Wet Locations
:: 7-Year Warranty
:: Dimming: 0~10V Dimmable
:: Optic Lens Type: I,II,III,IV,V
:: Total Lumens: 21400LM Max.
:: Color Temperature: 3000K/4000K/5000K
:: Color Rendering Index: ≥ 80
:: Beam Angle: 155°x75° Type III
:: 70,000 Hours Rated Life
Applications:
:: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
:: Replace existing HID flood lights/ wall packs
Features:
UL Listed
DLC Listed
Dimming 0-10V
Wet Location
MCTP
IP65
