Product Overview

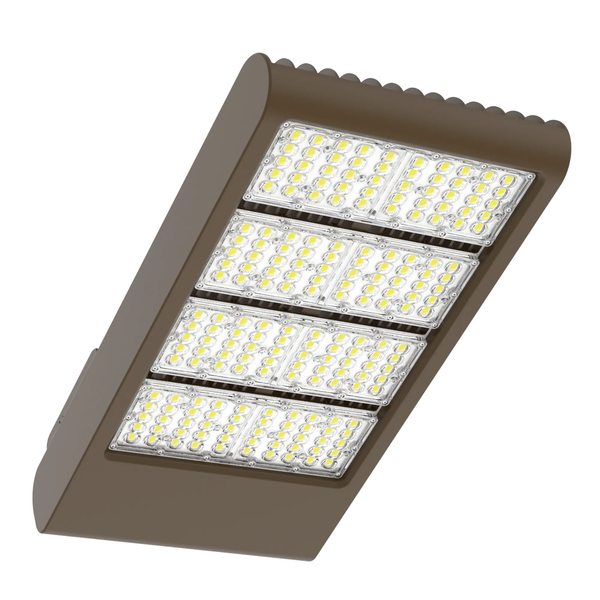

Large 480V Photocell Ready Power-Adjustable Flood/Area Light - LFX-LG-80-150W-MCTP-480V-SC
Technical Specs:
:: Voltage: 480V AC/50~60 Hz
::
:: Wattage: 80W/100W/150W
:: Power Factor: >0.9
:: Efficacy: 145 LPW
:: With Snap-on & Bolt Mounting Options for One- PersonInstallations. Select a Mounting Option (Sold Separately)
:: NEMA Twist-Lock Shorting Cap Included. Photocell SoldSeparately
:: Die-cast Aluminum Housing with Powder Coat Finish(Dark Bronze)
:: IP Rating: IP65
:: 10KV Lightning Surge Protection
:: Effective Projected Areas (EPA’s) are: Front = 0.38 ft ²,Side = 0.30 ft ², Face = 1.05 ft ²
:: Operating Temperature: -40°F to 104°F
:: Suitable for Wet Locations
:: Dimming: 0~10V dimmable
:: Optic Lens Type: III
:: Cord Type: 6’ SJTW 18/3 AWG cable
:: Total Lumens: 21750LM Max.
:: Color Temperature: 3000K/4000K/5000K
:: Color Rendering Index: ≥ 82
:: Beam Angle: 90º X 120º
Applications:
:: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
:: Replace existing HID flood lights/wall packs
Features:
DLC Listed
cUL
Dimming 0-10V
Wet Location
MCTP
