Product Overview

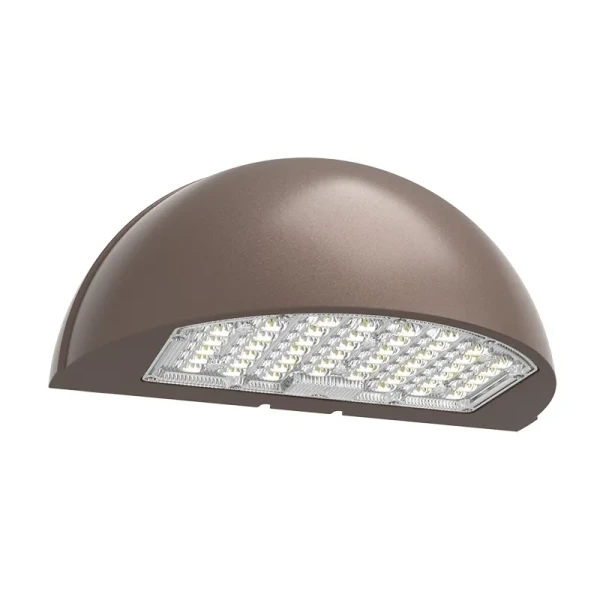

Half-Moon Wall Pack-Power & CCT Adjustable, 48W/64W/80W, 3000K/4000K/5000K - WPMX-48-80W-MCTP-SR
Technical Specs:
:: Voltage: 120-277VAC 60Hz
:: Wattage: 48W/64W/80W
:: Power Factor: >0.95
:: Efficacy: 135 LPW
:: Pre-installed DC Button Photocell with ON/OFF switch
:: Die-Cast Aluminum With Powder Coat Finish (DarkBronze)
:: High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
:: Operating Temperature: -4ºF to 104ºF
:: Full Cutoff, Dark Sky Compliant
:: IP 65,Wet Location
:: 7-Year Warranty
:: Dimming: 0~10V Dimmable
:: Multi CCT and Power (Switches are inside fixture)
:: The Type III Distribution Is Used for Wide WalkWays,on Ramps and Entrance Roadways, As Well As OtherLong, Narrow Lighting
:: Total Lumens: 10800LM Max.
:: Color Temperatures: 3000K/4000K/5000K
:: Color Rendering Index: CRI ≥ 80
:: Rated Life: 70,000 Hrs
Applications:
:: Engineered for exterior building illumination where performance, longevity, and clean aesthetics matter. The WPMX Series delivers a Type III distribution ideal for perimeter walls, walkways, ramps, entryways, loading docks, and parking structure facades. Field-adjustable wattage (24W-80W) and CCT (3000K/4000K/5000K) allow a single SKU to satisfy multiple project specifications, reducing stocked inventory for distributors and simplifying spec compliance for contractors. IP65 wet-location rating, die-cast aluminum housing, and Dark Sky full-cutoff optics make it suited for commercial, industrial, multi-family, hospitality, education, and municipal applications.
Features:
ETL Listed
Dimming 0-10V
Wet Location
MCTP
IP65
