Product Overview

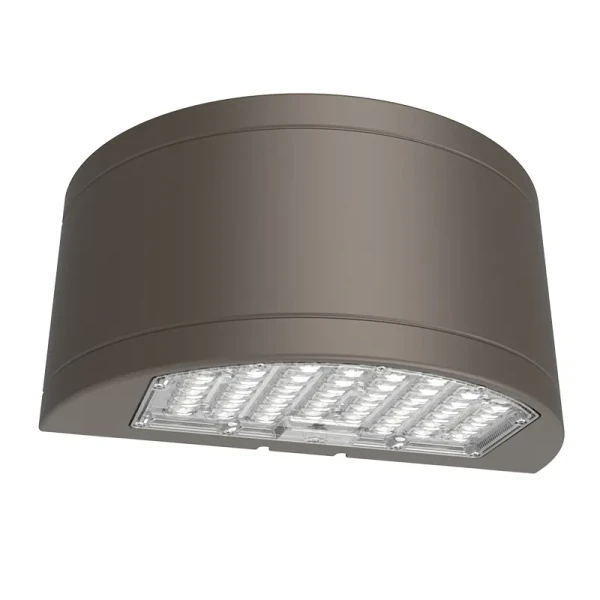

Cylinder Wall Pack, 48W/64W/80W, 3000K/4000K/5000K - WHCX-48-80W-MCTP
Technical Specs:
:: Voltage: 120-277VAC 60Hz
:: Wattage: 48W/64W/80W
:: Power Factor: >0.95
:: Efficacy: 145 LPW
:: Die-Cast Aluminum With Powder Coat Finish (Dark Bronze)
:: DC Button Photocell with ON/OFF switch Included
:: Integrated Uplight, Can be Controlled By The Switch. UP:10% DOWN: 90%
:: High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
:: Operating Temperature: -4ºF to 104ºF
:: Full Cutoff, Dark Sky Compliant
:: IP 65,Wet Location
:: 7-Year Warranty
:: Dimming: 0~10V Dimmable
:: Multi CCT and Power (Switches are inside fixture)
:: The Type III Distribution Is Used for Wide WalkWays,on Ramps and Entrance Roadways, As Well As OtherLong, Narrow Lighting
:: Total Lumens: 11600LM Max.
:: Color Temperatures: 3000K/4000K/5000K
:: Color Rendering Index: CRI ≥ 80
:: Rated Life: 70,000 Hrs
Applications:
:: LED Wall Pack Light series can be widely used as Exterior or Interior LED lighting for Hotels, Garages, Commercial Buildings, Public areas, Schools and Hospitals, etc.
Features:
DLC Listed
ETL Listed
Dimming 0-10V
Wet Location
MCTP
IP65
