Product Overview

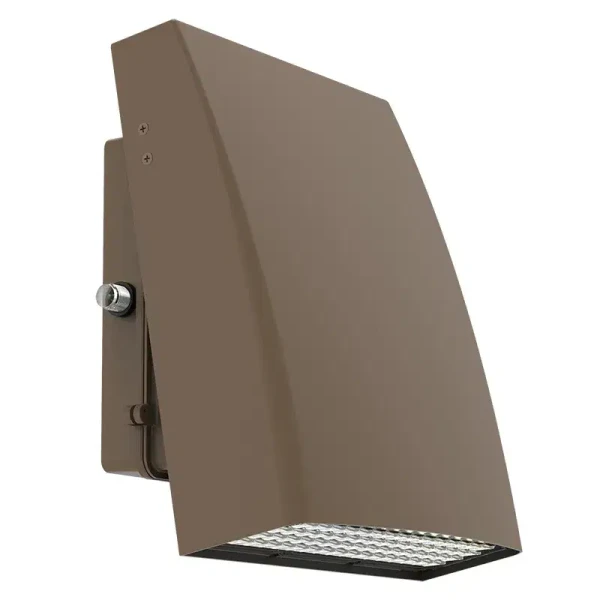

Gen. 2 Adjustable Wall Pack, 15W/20W/30W/50W, 3000K/4000K/5000K/5700K - LWAX-MD-15-50W-MCTP-P
Technical Specs:
:: Voltage: 120-277VAC 60Hz
:: Wattage: 15W/20W/30W/50W
:: Power Factor: >0.95
:: Efficacy: 125 LPW
:: Die-Cast Aluminum with Powder Coat Finish
:: DC Button Photocell Included
:: High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
:: Light Head Can Be Adjusted From 0° to 90°
:: Can Be Installed Facing Up (As An Uplight)
:: Full Cutoff, Dark Sky Compliant
:: Four 1/2” Knockouts: 1 Top. 1 on Each Side, 1 Back
:: Operating Temperature: -4ºF -104ºF
:: IP65 , Suitable for Wet Location
:: 7-Year Warranty
:: Dimming: 0~10V Dimmable
:: Multi CCT and Power (Switches are inside fixture)
:: The Type II Distribution is Used For Wide Walkways, On Ramps and Entrance Roadways, As Well As Other Long, Narrow Lighting
:: Total Lumens: 6250LM Max.
:: Color Temperatures: 3000K/ 4000K/ 5000K/ 5700K
:: Color Rendering Index: CRI ≥ 80
:: Beam angle: 80° x 100°
:: Rated life: 70,000 Hrs
Applications:
:: General site Lighting
:: Alleys
:: Loading docks
:: Doorways
:: Pathways
:: Parking areas
Features:
UL Listed
DLC Listed
Dimming 0-10V
MCTP
IP65
