Product Overview

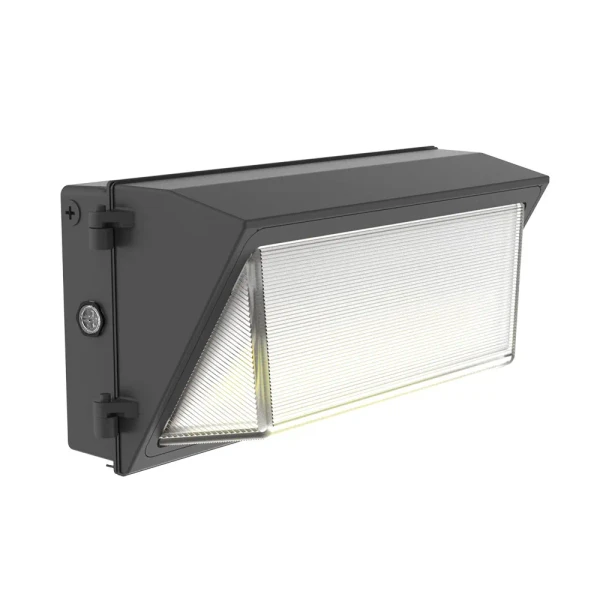

Adjustable Traditional Glass Lens Wall Pack with Emergency Backup, 100W/120W/150W, 3000K/4000K/5000K - WMXE-LG-100-150W-MCTP-P-EM
Technical Specs:
:: Input Wattage: 100/120/150W
:: Input Voltage: 120-277V AC 50/60Hz
:: Input current: 1.4 A
:: Power factor: >0.9
:: Efficacy: 140 LPW
:: ADC12 Aluminum Heat Sink, Outdoor Powder Coating
:: Lens: Prismatic Borosilicate Glass Lens
:: DC Button Photocell with ON/OFF switch Included
:: Same Footprint as Traditional HID Wall Packs
:: Four 1/2” Hubs: 1 Top. 1 on Each Side, 1 Rear
:: Mounting: Wall Mounting
:: Operating Temperature: -40°F ~ 104°F
:: Lifespan: 70000 Hrs. DRAFT
:: IP rating: IP65, Wet Locations
:: Dimming: 0-10V Dimming
:: Multi-Power Switch is Inside The Fixture
:: Total Lumens: 21000LM Max.
:: Color Temperature: 3000K/4000K/5000K
:: CRI: >70
Applications:
:: Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas.
:: Replace existing HID wall packs
:: Great for use with photocell
Features:
UL Listed
Dimming 0-10V
Wet Location
MCTP
IP65
