Product Overview

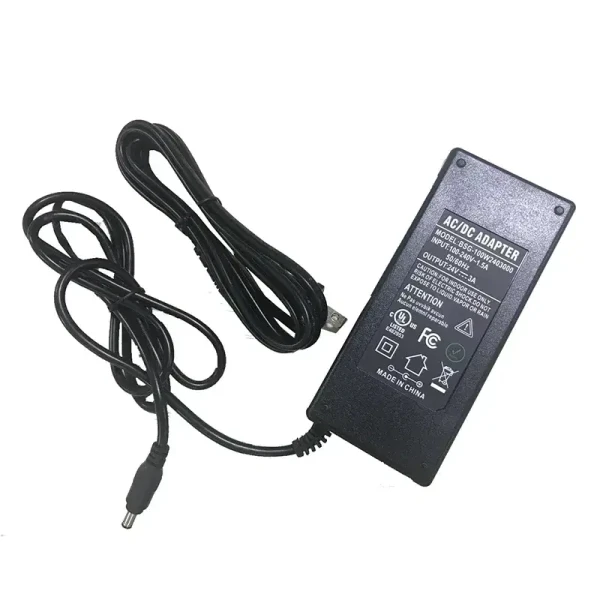

Accessories for 12V and 24V-ULR-IN-PIDR - LED Indoor Electronic Ribbon Light Plug-In Drivers-ULR-IN-PIDR-72W
Technical Specs:
:: Input voltage: 100~240VAC, 50/60Hz
:: AC Input Current: Max 1A
:: Output power: 72W
:: Output DC Voltage: 24VDC
:: Min Load: 3A
:: Rated Load: 3A
:: Line Regulation: ± 5%
:: Load Regulation: ± 5%
:: Efficiency: 83% Min
:: Turn on delay time: 2Sec Max. at 115VAC & Max Load
:: Rise time: 40mS Min. at 115VAC & Max Load
:: Hold up time: 5mS Min. at 115VAC & Max Load
:: Male 24V connector included
:: Operating Temperature: 32°F to 104°F
:: Protection Function: Short Circuit Test, Over current protection, Over Voltage Protection
:: Relative Humidity: 5% to 90% RH, 72Hrs, Full Load , Normal operating.
:: Ripple and Noise: 150mV p-p
