Product Overview

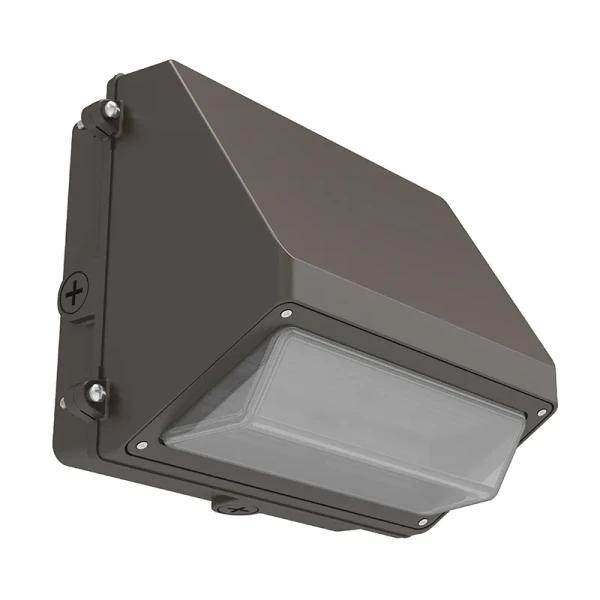

Westgate Lighting Max-Feature Small Bronze Cut-Off Wall Pack, 20W/30W/40W, 3000K/4000K/5000K - LWPMAX-SM-20-40W-MCTPB-P
Technical Specs:
:: Input Wattage: 20W/30W/40W
:: Input Voltage: 120-277V AC 50/60Hz
:: Input current: 0.6A
:: Power factor: >0.9
:: Efficacy: 135 LPW
:: ADC12 Aluminum Heat Sink, Outdoor Powder Coating
:: Photocell included
:: Lens: Prismatic Borosilicate Glass Lens
:: Same Footprint as Traditional HID Wall Packs
:: Four 1/2” Hubs: 1 top. 1 on Each Side, 1 Rear
:: Mounting: Wall Mounting
:: Operating Temperature: -40°F ~ 122°F
:: IP rating: IP65, Wet Locations
:: 7-Year Warranty
:: Multi Color Temperature & Multi Power/Wattage (Switches are inside fixture)
:: Dimming: 0-10V Dimming
:: Multi Power & CCT (Switches are inside fixture)
:: Adjustable throw (Narrow, Medium & Wide)
:: Total Lumens: 5400LM Max.
:: Color Temperature: 3000K/4000K/5000K
:: CRI: >70
:: Lifespan: 70000 Hrs.
Applications:
:: Entrance and courtyard lighting
:: Industrial and outdoor landscape lighting
:: Building and hotel applications
:: Wall lighting and more.
Features:
Healthy Glow
DLC Listed
cUL
Dimming 0-10V
Wet Location
MCTP
