Product Overview

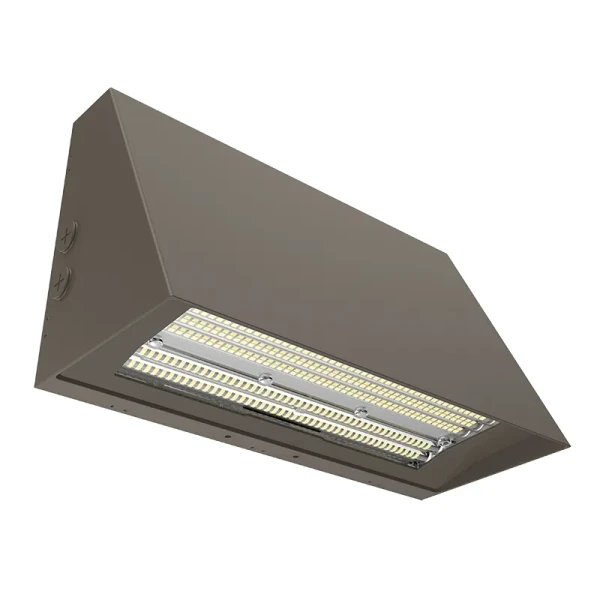

Westgate Lighting Bronze Max-Feature Wall Pack, 60W/80W/100W, 3000K/4000K/5000K - WPMAX-60-100W-MCTP
Technical Specs:
:: Input Wattage: 60W/80W/100W
:: Input Voltage: 120-277V AC50/60Hz
:: Input current: 0.6A
:: Power factor: >0.9
:: Efficacy: 135 LPW
:: ADC12 Aluminum Heat Sink, Outdoor Powder Coating
:: Photocell included
:: Pre-Installed Sensor Socket: Single-Pin Audio Jack on the side of the fixture, Sensor Not Included
:: Lens: Prismatic Borosilicate Glass Lens
:: Same Footprint as Traditional HID Wall Packs
:: Four 1/2” Hubs: 1 top. 1 on Each Side, 1 Rear
:: Mounting: Wall Mounting
:: Operating Temperature: -40°F ~ 122°F
:: IP rating: IP65, Wet Locations
:: 7-Year Warranty
:: Multi Color Temperature & Multi Power/Wattage(Switches are inside fixture)
:: Dimming: 0-10V Dimming
:: Multi Power & CCT (Switches are inside fixture)
:: Adjustable throw (Narrow, Medium & Wide)
:: Total Lumens: 6075LM Max.
:: Color Temperature: 3000K/4000K/5000K
:: CRI: >70
:: Lifespan: 70000 Hrs.
Applications:
:: Entrance and courtyard lighting
:: Industrial and outdoor landscape lighting
:: Building and hotel applications
:: Wall lighting areas and more
Features:
DLC Listed
cUL
Dimming 0-10V
Wet Location
MCTP
