Product Overview

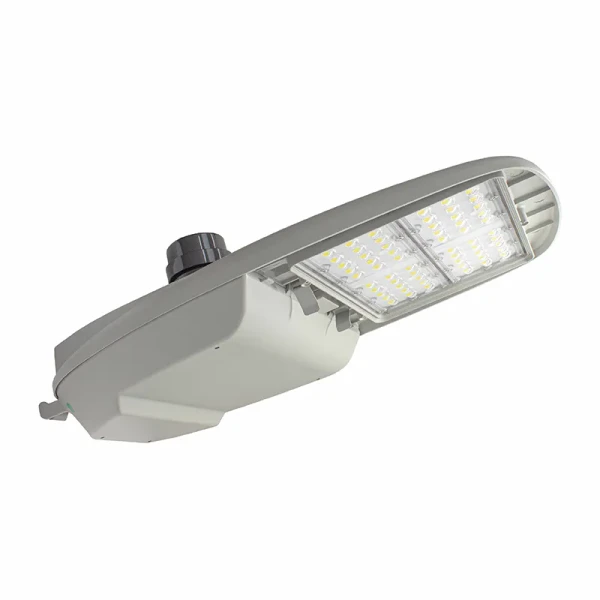

STL3 LED Street/Roadway Lights with NEMA Twist-Lock Photocell Socket - STL3-200W-50K
Technical Specs:
:: Voltage: 120-277V; 60Hz AC
:: Power Factor: >0.95
:: Wattage: 200W
:: Efficacy: 125 LPW
:: Die-cast Aluminum with Powder Coat Finish (Light Grey)
:: Cord Type: 40” SJTW 18/3 AWG Cable
:: W/NEMA Twist-lock Photocell Socket, Shorting Cap incl.
:: 6KV Lightning Surge Protection
:: With 2-15/16” Diameter Pole Entry with Adapter BracketInside for Smaller Pole Diameters
:: Maximum Ambient Temperature: -40°F to 104°F
:: Rated life: 50,000 hrs
:: Wet Location
:: IP Rating: IP65
:: Lens Type: Optical TYPE III Lens, High Light TransmittancePC, Anti-UV and Flame Resistant
:: Dimming: 0-10 Dimming
:: Driver Located in Isolated Compartment for ImprovedThermal Management
:: Total Lumens: 24000LM
:: Color Temperatures: 3000K/5000K
:: Color Rendering Index: CRI ≥ 80
Applications:
:: Ideal for general site lighting, street, roadway, alleys, loading docks, doorways, pathways and parking areas.
Features:
UL Listed
DLC Listed
Dimming 0-10V
Wet Location
IP65
