Product Overview

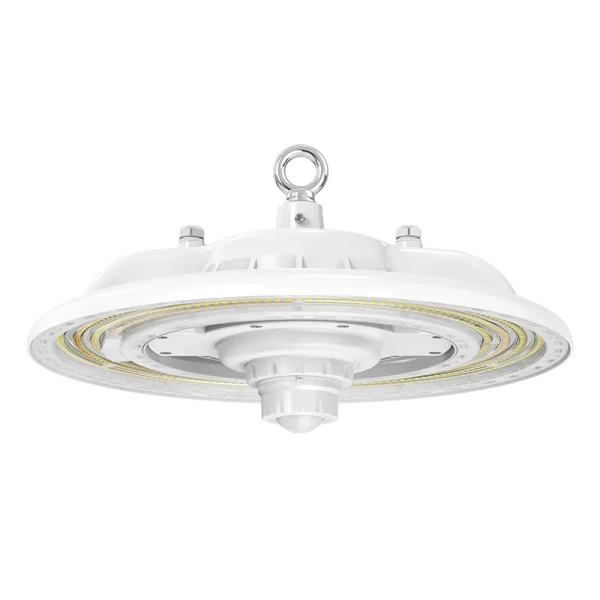

Sensor-Ready IP69 UFO High Bay for Food and Chemical Facilities, 100W/120W/150W, 3000K/4000K/5000K - UHXF-100-150W-MCTP-SR
Technical Specs
:: Input Wattage: 100W/120W/150W
:: Input Voltage: 120-277V 50/60Hz
:: Power Factor: >0.9
:: THD: <20%
:: Efficacy: 160 LPW
:: Aluminum Heat Sink, Outdoor Powder Coating Finish
:: Nano Coating Heat Dissipation Technology
:: Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
:: Twist-Lock Zhaga Socket Pre-Installed. See Motion Sensor Accessories.
:: 3.3’ SJTW 18,3 AWG Power Cable
:: 3.3’ SJTW Dimming Cable
:: LED PCB Board: High Conductive, Waterproof, Aging Resistance, salt mist Resistance, Ensure the Safety and Long Lifespan
:: Operating temperature: -40°F to 122°F
:: IP rating: IP69, Wet Locations
:: 5-Year Warranty
:: Dimming: 0~10V
:: Total Lumens: 24000LM
:: Multi Color Temperature & Multi Power (Selectable Switch Located On The Driver Housing)
:: Color Temperatures: 3500K/4000K/5000K
:: Color Rendering index: > 80
:: Beam Angle: 105°
:: Lifespan: 50,000 Hrs
Applications:
:: Ideal for general site lighting, alleys, loading docks, doorway, pathway, parking areas, warehouses and storage buildings.
Features:
ETL Listed
NSF
Dimming 0-10V
Wet Location
MCTP
