Product Overview

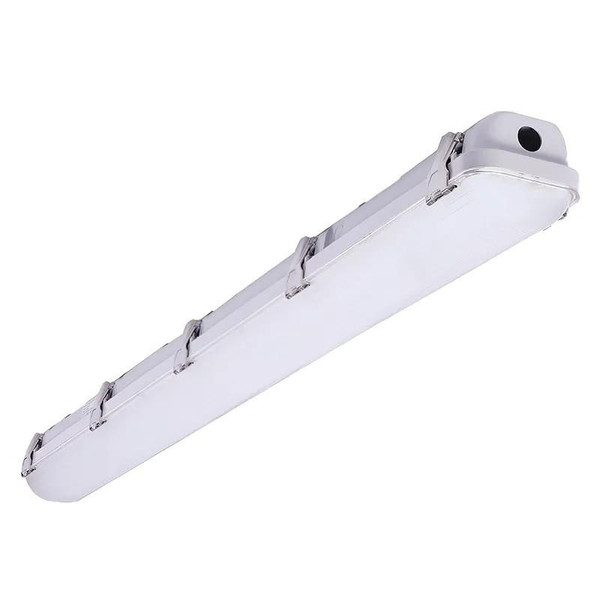

Linear Vapor-Tight Fixtures with Sensor & Emergency Backup, 200W/230W/245W, 3500K/4000K/5000K - LVTE-4FT-200-245W-MCTP-EM-SEN
Technical Specs:
:: Voltage: 120-277VAC 50/60Hz
:: Wattage: 200W/230W/245W
:: Power Factor: >0.9
:: Efficacy: 150LM/W
:: Grey Finish
:: Housing: Polycarbonate
:: Vandal-Proof Polycarbonate Lens
:: 1/2” NPT knockout on both ends. Liquid Tight Cord Connectors Incl.
:: Polycarbonate Construction Highly Impacts Resistant
:: UV-Stabilized Polycarbonate Diffuser Eliminates Glare
:: Diffuser Crystals Enhance Even Light Distribution
:: Stainless Steel Clips Evenly Seal The Luminaire
:: Stainless Steel Clamp
:: Operating Temp:-25.6°F to 104°F
:: Suitable For Wet Locations
:: IP Rating: IP66
:: Detection Range: 17Ft. / 360°
:: Mounting Height: 25Ft. Max.
:: DIP Settings switch on The Sensor
:: Optional Remote Control (WEC-3RC)
:: Output Power: 9W
:: Output Voltage: 48V
:: Li-Ion Battery / >90 Minutes Emergency Operation
:: Test Button Installed on The Side of The Fixture
:: Dimmable: 0~10V Dimming
:: LED SMD Type: 2835
:: Total Lumens: 36750LM Max.
:: Multi-CCT & Power(Selectable Switch Inside Fixture)
Applications:
:: Ideal for offices, retail stores, showrooms, and residential applications. Uniquely suited for areas where accessing the fixture is challenging
:: Suitable for restaurants, bakeries, food facilities, gyms, pool areas, and any application where NSF certified fixtures or high-end architectural designer grade fixtures are required.
:: NSF/ANSI 2:2015 Food Equipment: Splash Zone: Equipment surfaces that are subject to splash and food spillage during operation of the equipment other than those in a direct contact food-zone
Features:
ETL Listed
NSF
Dimming 0-10V
Wet Location
MCTP
