Product Overview

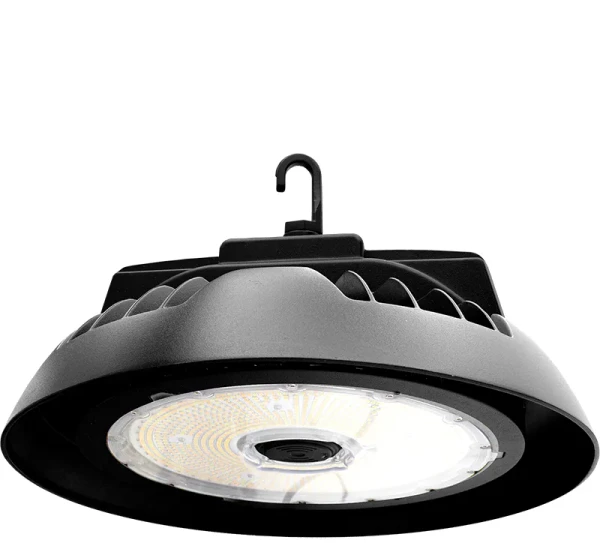

LED Sensor Ready Multi-Power & Multi-CCT UFO Highbays, 100W/150W/200W/230W, 4000K - UHX-230W-MP-40K-SR
Technical Specs:
:: Input Wattage: 100W/150W/200W/230W
:: Input Voltage: 120-277VAC 50/60Hz
:: Power Factor: >0.9
:: THD: <20%
:: Efficacy: 140/145/150/155 LPW
:: 6KV Lightning Surge Protection
:: ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
:: Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
:: Twist-Lock Zhaga Socket Pre-Installed. See Motion Sensor Accessories
:: 3' SJTW 18,3 AWG Power Cable
:: 6' SJTW Dimming Cable Cable
:: LED: LUMILEDS 2835
:: LED PCB Board: High Conductive, Waterproof, Aging Resistance, Salt Mist Resistance, Ensure the Safety and Long Lifespan
:: Operating Temperature: -40°F to 122°F
:: IP Rating: IP65, Wet Locations
:: 5-Year Warranty
:: Dimming: 0~10V
:: Multi Power (Selectable Switch Located on the Driver Housing)
:: Total Lumens: 15500LM/22500LM/29000LM/32200LM
:: Color Temperatures: 4000K
:: Color Rendering index: > 80
:: Beam Angle: 110°
:: Lifespan: 50,000 Hrs.
Applications:
:: Ideal for general site lighting, alleys, loading docks, doorway, pathway, parking areas, warehouses and storage buildings.
Features:
UL Listed
DLC Listed
Dimming 0-10V
Wet Location
MP
IP65
