Product Overview

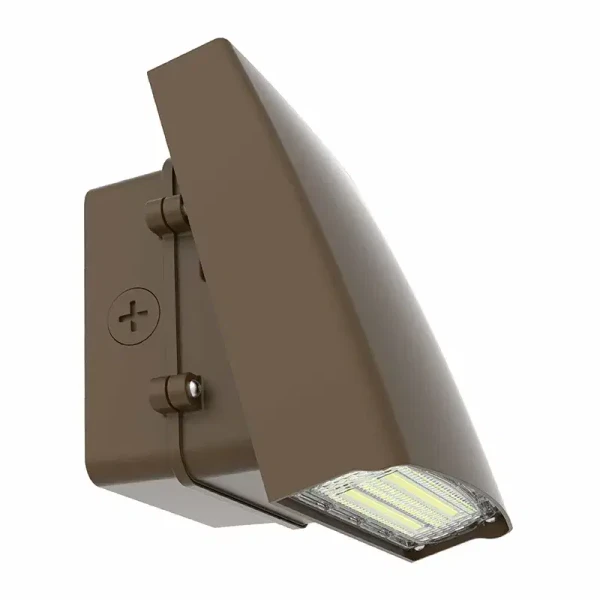

LED Power & CCT Adjustable Cutoff Wall Packs, 12W, 5000K - LWAX-SM-12W-50K
Technical Specs:
:: Voltage: 120-277VAC 60Hz
:: Wattage: 12W
:: Power Factor: >0.95
:: Efficacy: 125 LPW
:: Die-Cast Aluminum With Powder Coat Finish
:: High Light Transmittance, Anti-UV and Fire ResistantShatterproof PC Lens
:: Light Head Can Be Adjusted From 0° to 90°
:: Can Be Installed Facing Up (As An Uplight)
:: Full Cutoff, Dark Sky Compliant
:: Four 1/2” Knockouts: 1 Top. 1 on Each Side, 1 Back
:: Operating Temperature: -4ºF -104ºF
:: Wet Location
:: 7-Year Warranty
:: IP65
:: Dimming: 0~10V Dimmable
:: The Type II Distribution is Used For WideWalkways, On Ramps and Entrance Roadways, AsWell As Other Long, Narrow Lighting
:: Total Lumens: 1500LM
:: Color Temperatures: 3000K/4000K/5000K
:: Color Rendering Index: CRI ≥ 80
:: Beam angle: 80° x 100°
:: Rated life: 70,000 Hrs
Applications:
:: Ideal for general site lighting, alleys, loading docks, doorways, pathways and parking areas. Great for use with motion sensors or other instant on/off controls.
Features:
UL Listed
DLC Listed
Dimming 0-10V
IP65
