Product Overview

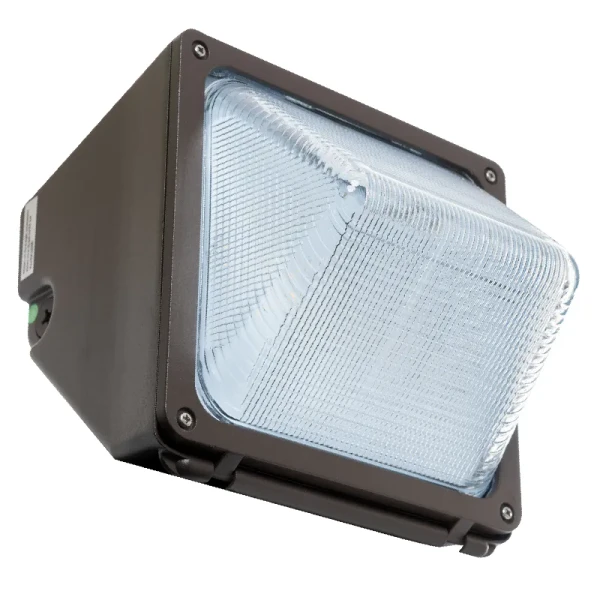

LED Multi-Power Non-Cutoff Wall Packs - WMX-SM-15-30W-30K
Technical Specs:
:: Input Wattage: 15/20/25/30W
:: Input Voltage: 120-277V AC 50/60Hz
:: Input current: 0.35A
:: Power factor: >0.9
:: Efficacy: 130 LPW
:: ADC12 Aluminum Heat Sink, Outdoor Powder Coating
:: Lens: Prismatic Borosilicate Glass Lens
:: Same Footprint as Traditional HID Wall Packs
:: Four 1/2” Hubs: 1 top. 1 on Each Side, 1 Rear
:: Mounting: Wall Mounting
:: Operating Temperature: -40°F ~ 104°F
:: Lifespan: 70000 Hrs.
:: IP rating: IP65, Wet Locations
:: Dimming: 0-10V Dimming
:: Multi-Power Switch is inside the Fixture
:: Total Lumens: 3900LM Max.
:: Color Temperature: 3000K/4000K/5000K
:: CRI: >70
Applications:
:: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
:: Replace existing HID wall packs
:: Great for use with photocell
Features;
UL Listed
DLC Listed
Dimming 0-10V
Wet Location
IP65
