Product Overview

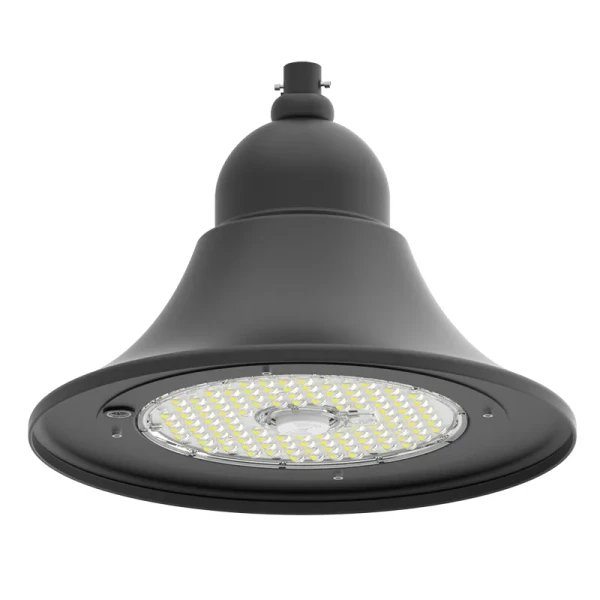

Designer Area Bell Light System, 50W/80W/100W, 3000K/4000K/5000K - DAB-B20-50-100W-MCTP-SR
Technical Specs:
:: Voltage: 100-277V AC 50/60Hz
:: Wattage: 50W/80W/100W
:: Power Factor: 0.9
:: THD<20%
:: Efficacy: 130 LM/W
:: AL1060 Aluminum Housing, Outdoor Powder Coating
:: Photocell Included (with disconnected switch)
:: EPA Rating is 1.92 square feet.
:: Twist-Lock Zhaga Socket Pre-Installed. See Motion Sensor Accessories
:: 6' SJTW 18, 3 AWG Power Cable
:: 6’ SJTW 18,3 AWG Power Cable
:: 6’ SJTW Dimming Cable
:: Aluminum LED board: High Conductive, Waterproof, AgingResistance, Salt resistance
:: Programmable Bi-Level Motion Sensor & EmergencyBackup Options
:: Operating Temperature: -40°F~104°F
:: IP Rating: IP66, Suitable for Wet Locations
:: 7-Year Warranty
:: Multi CCT and Power: Selectable Switch Inside OfThe Fixture
:: Dimmable: 0~10V Dimming
:: Lens: High Light Transmittance PC, anti-UV and FireResistant
:: LED: Lumileds 2835
:: Total Lumens: 13000LM Max.
:: Color Temperature: 3000K/4000K/5000K
:: Color Rendering index: >70
:: Beam Angle: Type III
:: Lifespan: 70000 H
Applications:
:: Ideal for Gardens, Amusement Parks, Residential Quarters, Industrial Parks, and Pedestrian Streets.
Features:
UL Listed
Dimming 0-10V
Wet Location
MCTP
