Product Overview

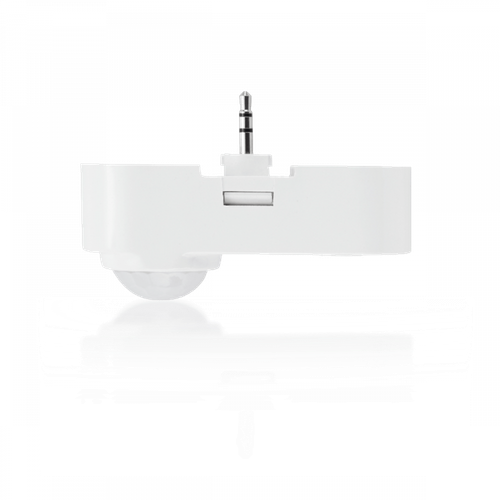

Bluetooth Sensor, DC 12V, 2.5mm Aux plug, Daylight Harvest+PIR,Lens included, use for Panel/Troffer/Troffer Retrofit Kit - MSB-DCE-08-TL25
Specifications
Product Series ControlXP
Mounting Type 2.5mm Plug
Environment Indoor
Operating Temperature -30°C to 55°C (-22°F to 131°F)
Shape Round
Listings DLC, UL, FCC
IP Rating IP20
Product Type Control
Generation G1
Voltage Rating Input DC 12V
Warranty 5 Year
Labor Warranty No
Controls Type Occupancy or Motion Sensor and Daylight Harvesting
Connection Type 2.5mm Plug
Antenna Type Internal
Comm Range 100 ft. Max
Dim to Off Yes
Input Voltage DC 12V
Aux Power Output No
Sinking Current 10mA Max
Input Current 30mA Max
Occupancy Sensor Yes
Sensor Range 32ft max, 16ft minor movement
Operating Mode PIR and Daylight Harvesting sensor
Controls Title 24 Y
