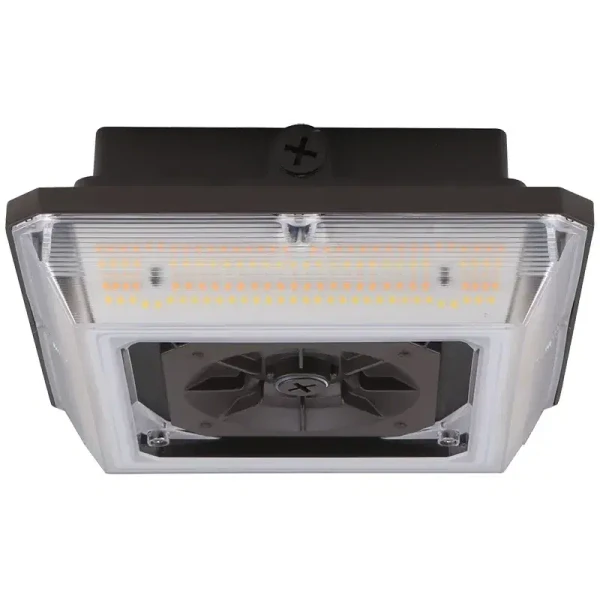

Angled-Beam Garage Canopy, 20W/30W/45W, 3000K/4000K/5000K - CAX-20-45W-MCTP-SR

Westgate Manufacturing

(No reviews yet) Write a Review
$177.11
SKU:
CAX-20-45W-MCTP-SR
Adding to cart… The item has been added

Product Overview

Angled-Beam Garage Canopy, 20W/30W/45W, 3000K/4000K/5000K - CAX-20-45W-MCTP-SR



Technical Specs:


:: Input Wattage: 20W/30W/45W
:: Input Current: 0.6A Max.
:: Input Voltage: 120-277VAC 50/60Hz
:: Power Factor: >0.90
:: LMW : 140
:: Die-cast aluminum
:: Four 1/2" threaded hubs located on four sides of the housing
:: Sensor-Ready: 3-pin socket pre-installed. See motion sensor accessories
:: Prismatic Polycarbonate Lens
:: Operating Temperature: -40°F ~ 131°F
:: IP rating: IP65, Wet Location
:: 7-Year Warranty
:: Multi Color Temperature & Multi Power (Selectable Switch Located on the Housing)
:: Dimming: 0~10V Dimmable
:: Total lumens: 6300LM
:: Color Temperature: 3000K/4000K/5000K
:: Color Rendering Index: >80
:: Beam Angle: 150°
:: Lifespan: 70000 Hrs.

Applications:


:: Indoor Parking
:: Commercial Buildings
:: School
:: Warehouses
:: Complexes
:: Apartment
:: Garage

Features:


UL Listed
Dimming 0-10V
Wet Location
MCTP
IP65



Spec Sheet
