Product Overview
Product Overview

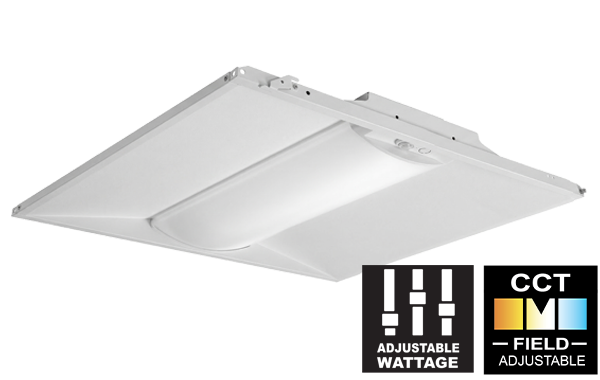

The Aleo Lighting LTR-22-UXL/8CT G6-HD (SR/RC) is a ltr g6 series led troffer retrofit kit designed for commercial lighting applications. Its configuration and control options make it suitable for new construction, retrofit, and facility-upgrade projects where applicable.
Key Features
- Lumen selectable for field-adjustable light output
- Field-selectable color temperature
- Supports field-installed plug-and-play sensor options
- AleoBlue controls compatibility
- SimplBlue controls compatibility
Specifications
- Series: LTR G6
- Fixture Type: LED Troffer Retrofit Kit
- Form Factor: 2' x 2'
- Input Voltage: 120-277V
- Nominal Wattage: 20W / 25W / 30W
- Color Temperature (CCT): 3500K / 4000K / 5000K
- Dimming: 0-10V
- Finish: White
Controls & Configuration
- Lumen Selectable: Yes
- CCT Selectable: Yes
- Field-Install Plug-and-Play Sensor: Yes
- AleoBlue Compatible: Yes
- SimplBlue Compatible: Yes
Applications
Designed for commercial and institutional lighting projects where led troffer retrofit kit is specified. Verify project requirements and selected configuration before ordering.
